AFG系列全自动粘箱机

整机性能特点   Functions and features:

AFG系列全自动粘箱机,由真空送纸部、涂胶折叠部和计数堆积输出部三部分组成。采用变频调速,标配PLC触摸屏控制,操作简单，平均粘箱速度150张/分钟。高速节能,节省人工成本。

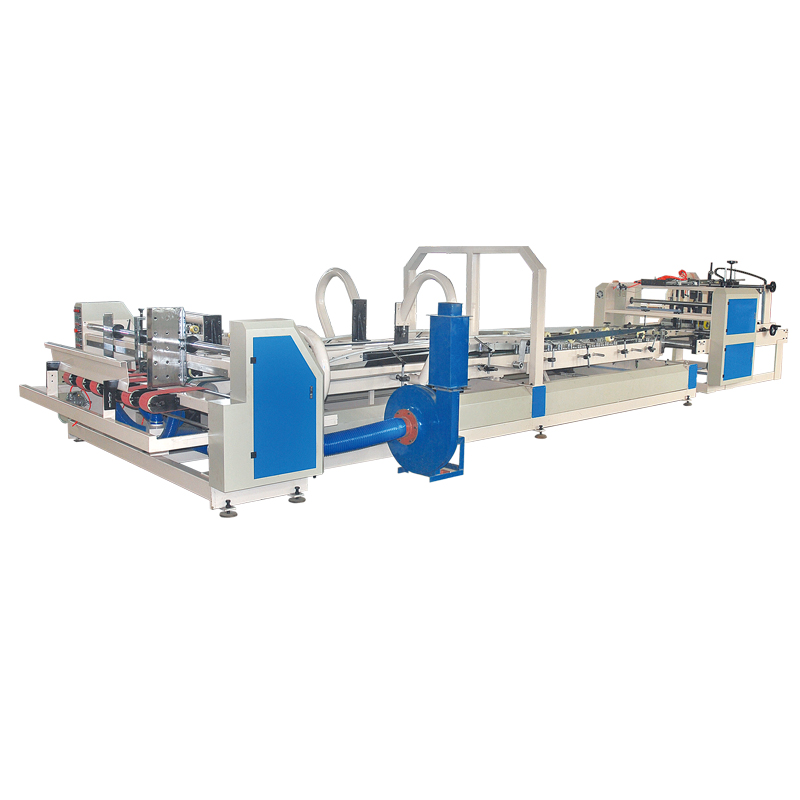

AFG series Automatic folder gluer machine consiste of three sectionsvacuum feeding section, glue & floding section, counter & stacker section.Frequency conversion motor with quality inverter adjust speed. PLC & TouchScreen control system for easy operation and running stable. Average speed150sheets/min. Energy Conservation and High Speed, Saving Labor Cost.

送纸部   Feeding section:

吸风进能的适应弯曲纸板;

Vacuum suction feeding to feed warping paperboard easily.

采用电磁离合器及电磁刹车系统,使送纸部可单独控制,操作简便;

Quality electromagnetic clutch and brake adopted,feeding sectioncontroled independent,operation easily

压线轮可调,适合纸板厚度2-8mm;

Scorer wheel adjustable,suit for 2-8mm thick paperboard

二次压痕机构,可对压痕质量不佳的纸板进行二次压痕。

Second creasing struction can impress again the paperboard which wasnot creased well.

涂胶折叠部特色   Glue & folding section:

结构简单,胶量可控制,清洗方便;

Simpless structure and high reliability, glue quantityadjustable, cleaning easily.

采用不锈钢涂胶轮,涂胶均匀,无故障,节省胶量;

Stainless steel glue wheel adopted, long life and savingglue cost:

采用橡胶皮带输送纸板，自动折叠;

Imported quality rubber belt adopted, automatic folding.

纸板矫正装置和压线矫正装置。

With paperboard rectify device and creasing rectify device

技术堆积输出部特色   Counter & stacker section:

计数堆码原理简单。

Stacking and counting are simple and reliable;

采用数字控制,操作简单,不停机输入数据,自动计数,准确输出。

Digital control,operation easily and reliable.No-stop put in data andautomatic counting

具有纠偏功能，偏差可调。

With rectification function.

计数和推出采用气动方式,动作准确,。

Paperboard counting and put out by pneumatic, stable and quickly.

主要技术参数   Main technical parameter:
