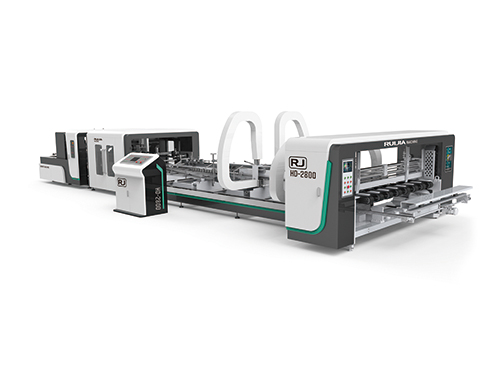

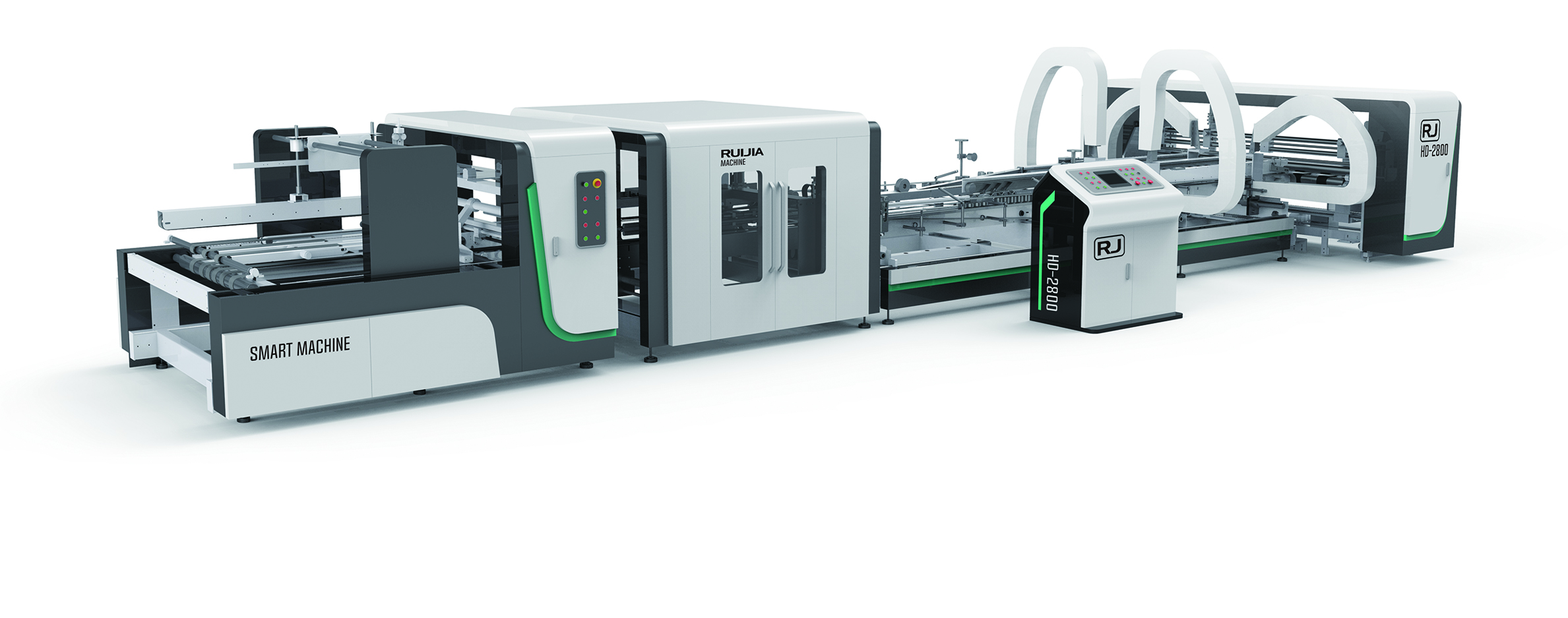

功能与特点 Function and characteristic 全自动粘钉一体机，由高速碰线送纸部、涂胶折叠部、齐纸校正部、高速钉箱部和计数堆积输出部5部分组成。本机可以在纸板不停的情况下实现高速碰线，从而保证纸箱成型以后的大小口的问题。变频调速，标配PLC触摸屏控制，整机电动调整订单储存。只需在触摸屏上输入三个数据(长，宽，高的尺寸)，机器自动调整到位。操作简单可靠，钉粘工作时独立运行，钉箱部动作伺服电机控制。跑步式机头、跑步式碰线，成型更稳，速度更快。粘箱最高车速度180米/分钟,钉箱3个钉120-150片/分钟。高速节能，节省人工成本。 The machine is composed of 5 parts: high-speed wire feed part. glue-coating folding part, paper alignment part, high-speed nail box partand counting accumulation output part The machine can realize high-speed line touching when the cardboard is not stopped, so as to ensurethe size of the carton after forming. Frequency conversion speed regulation, standard PLC touch screen control, machine electric adjustmentorder storage. Just enter three data (ength, width, height dimensions) on the touch screen and the machine automatically adjusts into place.The operation is simple and reliable, the nalling work is operated independently, and the nalling box partis controlled by servo motor. Runninghead. running touch line. forming more stable, faster. The maximum speed of the glue box is 180 meters/min, and the nal box is 3 nails 120-150 pieces/min. High speed energy saving, save labor costs. |
| 供纸单元(电动调节三压线) (Electric adjustment three-pressure line)PAPER FEED UNIT | |

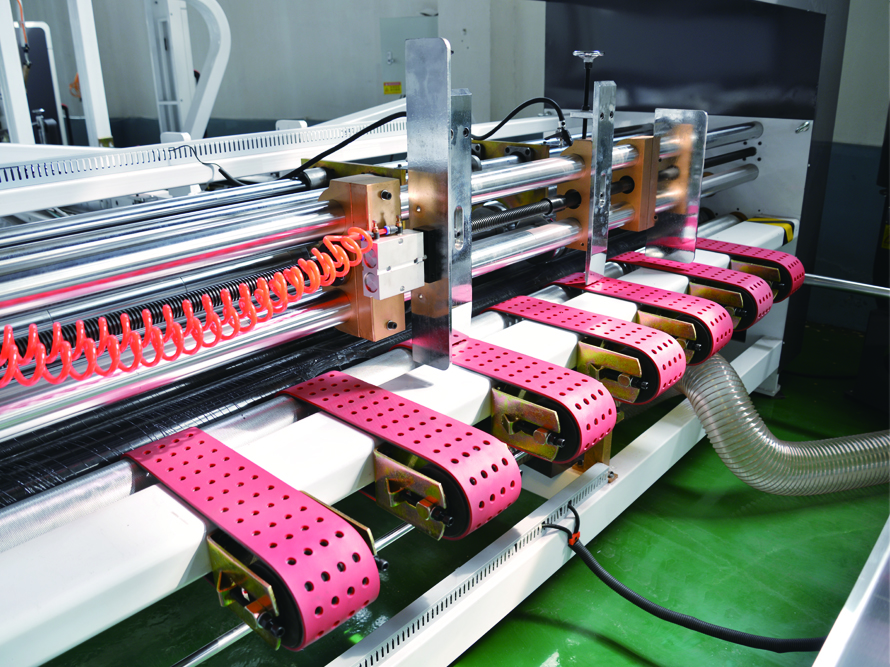

| 功能与特点 Function and characteristic ◎采用高档的电磁离合器及电磁刹车系统，使供纸部可单独控制，操作简单可靠。 ◎供纸部气动拍齐机构，前挡板同步上下调节。 ◎与折叠部联动，变频调速。 ◎供纸部的前挡板和走纸皮带左右可调。 ◎选用优质钢材制作的纸板高度调整结构，快速调整各种不同规格尺寸的箱高和纸板的长度。 ◎供纸部吸风皮带选用高科技材料制作，拉力层无缝对接环形带，保障机械在使用中无后顾之忧。 ◎供纸部吸风电机、主转动电机均选用知名品牌高品质。 ◎高稳定性能电机。 ◎选用高档电磁离合器及电磁刹车系统，使供纸部可单张或连续操作，有效节制规格调整中纸板的浪费几输出纸板的精准度。 ◎主传动轴(六棱方钢)选用镍铬合金经特殊工艺加工制作。 |
◎Adopts high-grade electromagnetic cutch and electromagnetic brake system, enabing independent control of the paper feed unit with smple and reliable operation. ◎Equipped with pneumatic aligning mechanism for the paper feed unit front baffie adjusts up and down synchronously. ◎Links with the folding unit and features variable frequency speed control. ◎Front baffle and paper feeding belts of the paper feed unit are adjustable left and right. ◎The paperboard height adjustment structure is made of high-quality steel, allowing quick adjustment for diferent box heights and paperboard lengths. ◎The suction belt of the paper feed unit adopts high-tech material, with a seamless joint annular tension layer, ensuring stable and trouble free peration. ◎The suction motor and main drive motor of the paper feed unit are high-quality, high-stability motors from famous brands. ◎Adopts high-grade electromagnetic cuich and electromagnetic brake system, enabing single-sheet or continuous operation of the paper feed unit, fectivelyreducing paper waste during size adjustment and ensuring accurate paper output. ◎The main drive shaft (hexagonal steel) is made of nickel-chromium alloy with special processing technology. | |
| 涂胶单元(双电机差速装置) (Dual-motor Differential Device)GLUING & FOLDING UNIT | |
| 功能与特点 Function and characteristic ◎采用皮带式前缘吸风送纸，准确快速。 ◎自动供胶，循环胶水，永无断胶，无需人工加胶，省时省力。 ◎不锈钢涂胶轮，耐腐蚀、耐磨损、涂胶均匀、节约胶水，用胶量大约是人工涂胶量的三分之一。 ◎折叠部配有可调式多道压线轮组，使纸箱折叠更加顺畅，粘合更加美观准确。 ◎计数部纸箱堆积校正，输出安全平稳、准确无误差，数字控制，操作简单，无需停机即可输入。 ◎Adopts belt-type front-edge vacuum suction feeding, which is accurate and efficient. ◎Automatic glue supply with circulating glue system, ensuring no glue interruption, nomanual glue adding, saving time and labor. ◎Stainless steel gluing wheel, corrosion-resistant and wear-resistant, with uniformgluing and glue saving; glue consumption is only about one-third of manual gluing. ◎The folding unit is equipped with adjustable multi-segment creasing wheel sets,making carton folding smoother and bonding more precise and aesthetic. ◎The counting unit features carton stacking alignment, with safe, stable and accurateoutput; digital control enables simple operation and parameter input without stoppingthe machine. |
| 折叠单元 GLUING UNIT | |

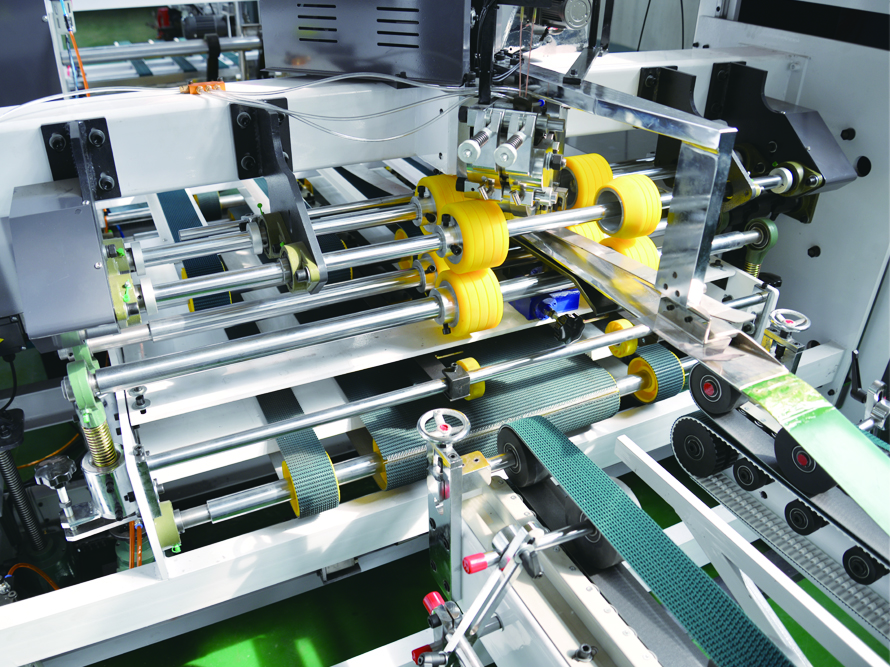

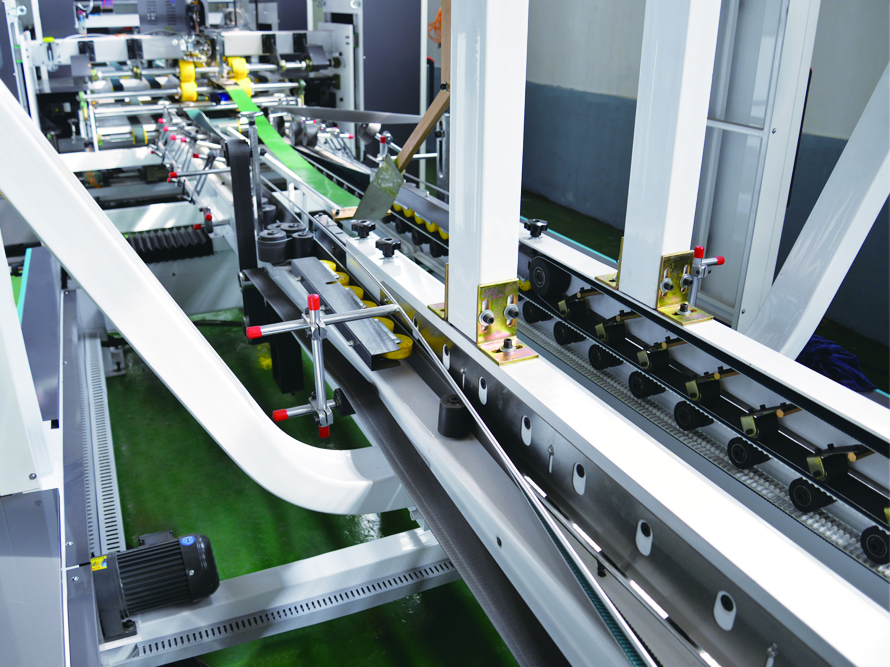

| 功能与特点 Function and characteristic ◎主电机采用变频调速，系统无噪音，调速灵活、稳定。 ◎用不锈钢轮涂胶，涂胶均匀，无故障，又省胶。 ◎折叠部选用进口摩擦、超耐磨特殊材料制作的无缝对接环形输送皮带，精准无误的完成纸板的自动折叠。 ◎涂胶部选用优质不锈钢涂胶轮，涂胶均匀、省胶高效。 ◎折叠部配备双道压痕矫正装置，精准有效的矫正纸板坑线的偏差，使整个纸箱完成最精准的折叠。 ◎The main motor adopts variable frequency speed control, featuring low noise,flexible and stable speed regulation. ◎Stainless steel gluing wheels are adopted for uniform gluing, trouble-free operationand glue saving. ◎The folding unit is equipped with seamless annular conveyor belts made of importedfriction-resistant and ultra-wear-resistant special materials, ensuring accurate andreliable automatic paperboard folding. ◎The gluing unit adopts high-quality stainless steel gluing wheels for uniform gluing,high efficiency and glue saving. ◎The folding unit is equipped with dual crease correction devices, which accuratelyand effectively correct deviations of the corrugated lines, ensuring high-precisionfolding of the carton. |
| 钉箱单元 STITCHING UNIT | |

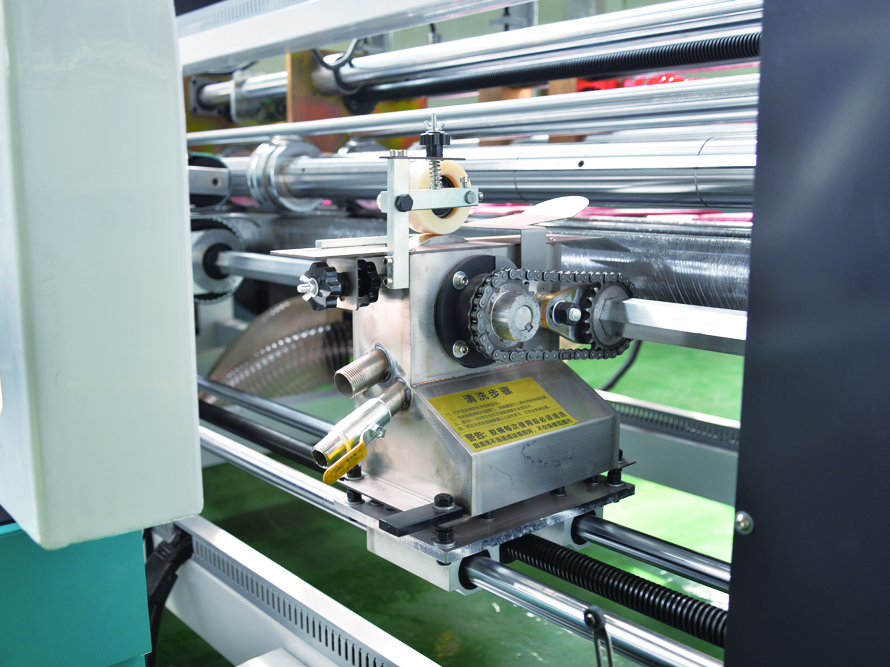

| 功能与特点 Function and characteristic ◎尺寸采用全电动式控制，变换尺寸只需2-3分钟，简单方便，不需要经验。 ◎伺服调整钉距，使用电脑设定自动调钉距。 ◎送丝轮使用高碳钢真空热处理制成。 ◎叉刀(台湾进口)钨钢精密加工制成，确保使用两年。 ◎德国生产内线钢丝同步带。 ◎Full electric control for size adjustment; size changeover takes only 2-3 minutes,simple and convenient, no experience required. ◎Servo-controlled stitch spacing, automatically adjustable via computer setting. ◎The wire feeding wheel is made of high-carbon steel with vacuum heat treatment. ◎Fork knives (imported from Taiwan) are precision-machined from tungsten steel,ensuring a service life of up to two years. ◎Equipped with inner wire synchronous belts made in Germany. |
| 计数堆积输出单元 COUNTING & STACKING OUTPUT UNIT | |

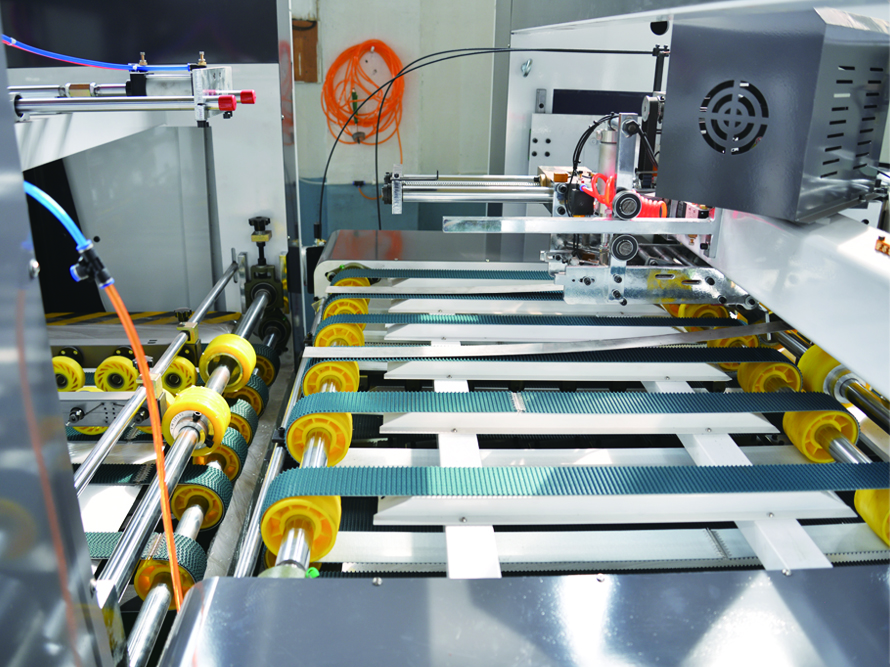

| 功能与特点 Function and characteristic ◎采用数字控制，操作简单，动作可靠，可不停机输入数据，自动计数，准确输出。 ◎利用皮带输送纸箱，堆积整齐，堆积速度120m/分。 ◎具有纠偏功能，偏差可调。 ◎计数和推出采用气动方式，动作可靠、准确、快速。 ◎Adopts digital control with simple operation and reliable action. Data can be inputwithout stopping the machine, with automatic counting and accurate output. ◎Cartons are conveyed by belts for neat stacking, with a stacking speed of 120 m/min. ◎Equipped with deviation correction function, and the deviation is adjustable. ◎Counting and pushing adopt pneumatic drive, featuring reliable, accurate and fastaction. |
