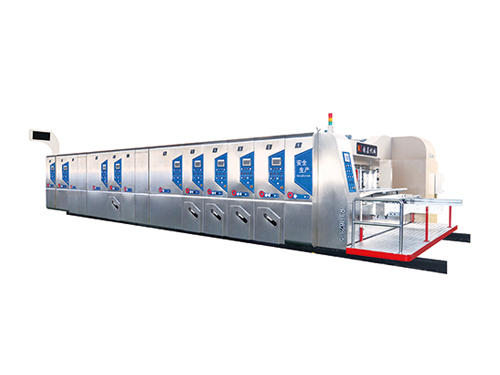

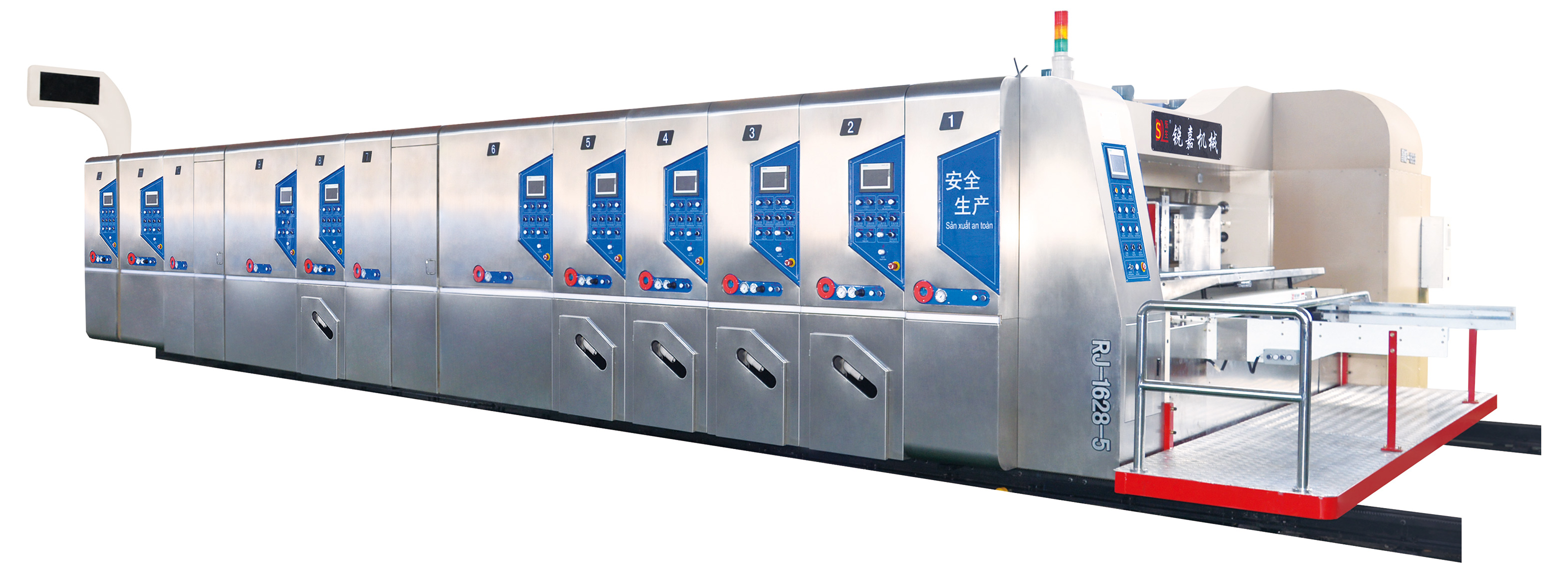

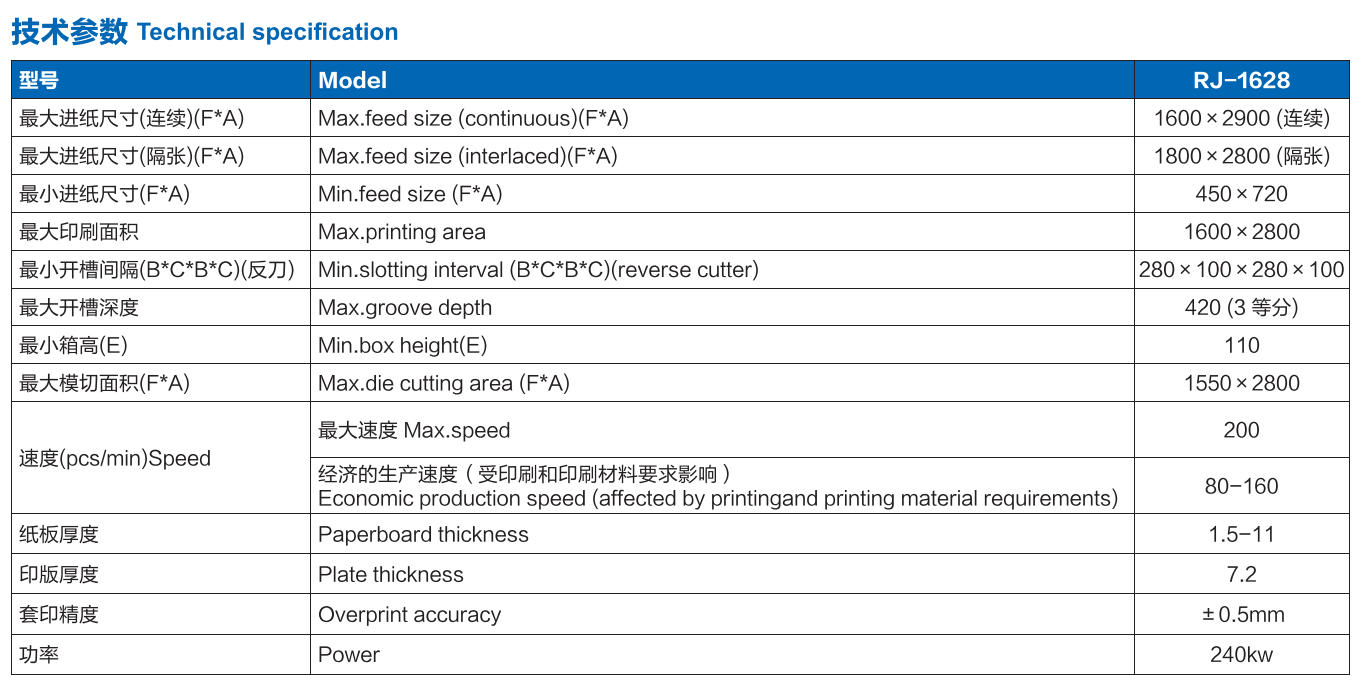

全程吸附水墨印刷烘干开槽模切机

功能与特点 Function and characteristic

◎采用独立电脑台操作配合各分部PLC及触摸屏进行自动化操作控制，主操作功能采用数据输入式或者订单管理式自动调整，操作简单方便，换单快捷，大大节省操作用工及调整用时，可配生产系统。

◎整机统一驱动，气动联锁，锁机联动，自动分合机组，行走时持续响铃警示，提醒操作人员，确保人员安全。

◎各单元内部均设有急停开关，可在内部停止各单元移动，确保内部操作人员安全。

◎最高设计速度200张/分钟，客户验收速度160张/分钟。

◎所有主传动齿轮采用特殊进口材料，渗碳淬火，精度研磨，经久耐用;齿轮润滑采用油泵喷淋系统。

◎全部控制电器均采用国际一流品牌，稳定耐用，主控电器箱设有工业恒温空调，各分部电器均设有防尘、散热装置，确保操控运行性能稳定可靠。

◎整机具备自动油路平衡系统和自动循环润滑系统。(安装平油器)

◎采用真空吸附走纸，纸板适用度广纸板套印更精准，并可节省调机时间及纸板原料。

◎可任意搭配自动上料机以提高自动化程度和减少劳动强度。

◎Independent computer peration with each division PLC and touch screen for automatic        peration control, the main operaton function using data input or ordermanagement automatic adjustment, easy to operate, quick to change orders, greatly saving the operation of labor and adiustment time, can be equipped withproduction system.

◎The whole machine unfed drive, pneumatic interock, lock machine inkage, automatic cosing unt. contnuous bll warring when walking. to remind the operatorto ensure personnel safety

◎Each unit is equipped with an emergency stop switch, which can stop the movement of each unitinternaly to ensure the safety of internal operators

◎Maximum design speed of 200 pieces/min, customer acceptance speed of 160 pieces/min.

◎All main ransmission gears are made of special mported materials, carburzed quenching. precision grnding, durable; Gear uorication adopts ol pump spray

systen

◎All control electrical applances are Intemational frst class brand, stble and durable, the main control elecrical box s equipped with industrial constanttemperature alr condtioning. each branch electrical appliances are equipped with dust, heat dissipation devices, to ensure stable and reliable operation performance.

◎The whole machine has automatic oil circui balancing system and automatic circulation lubrication system.

◎Using vacum adsorpion paper, the paper board application is wide, the paper board overprinting is more acurate, and can save the time of adustment machineand cardboard raw materials.

◎Can be matched with automatic feeding machine to improve the degree of automation and reduce labor intensity.

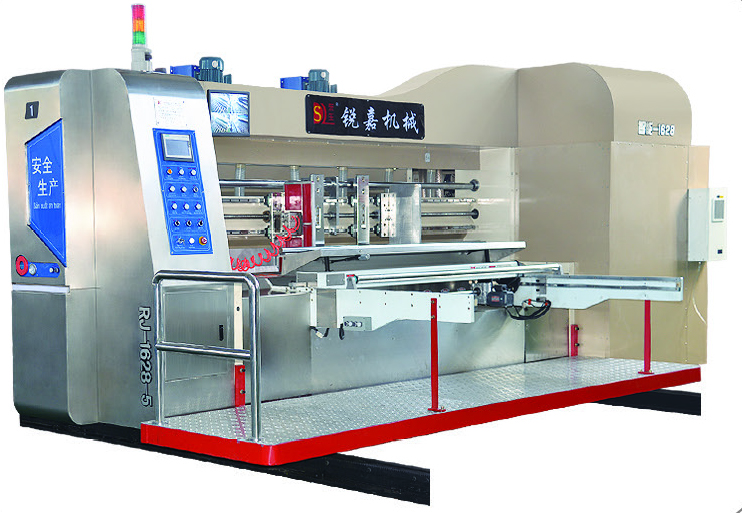

◎机电动行走、气动锁紧，具备自动归零功能。

◎本机主马达采用变频马达，标配启动保护功能。

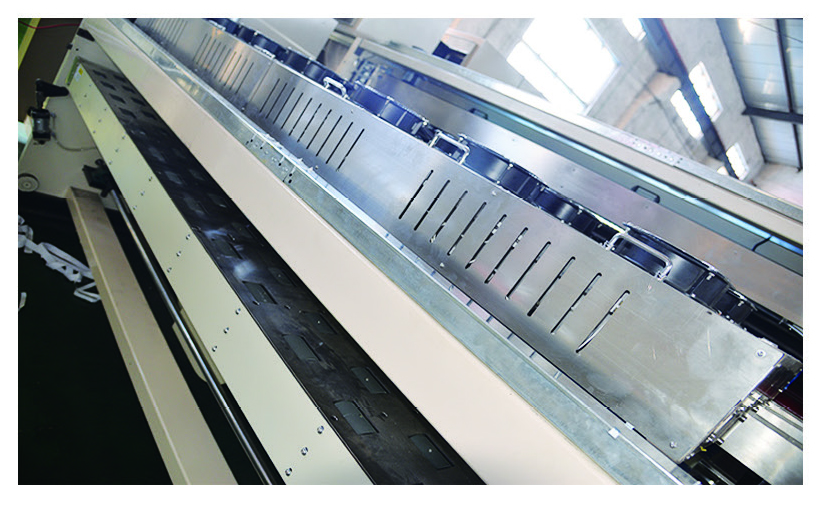

◎全程吸附设计能较高精准度输送弯/翘及薄纸板。

◎送纸部采用4轴免压伺服前缘双风箱送纸更平稳、准确，可连续或隔张送纸。

◎采用3组强力吸尘风机配合2组排毛刷，管道集中收尘，高效清除纸板表面的灰尘。

◎吸风范围可预设纸板高度，宽度，直接进行智能化调整定位。(随纸板宽度变化)。

◎侧挡板自动排齐/数显电动(入订单管理系统)，前挡板、抬纸箱前后/升降电动调整。

◎以纸板前缘作为定位基准，符合印刷、开槽、模切之定位基准。

◎提高送纸和印刷精准度。

◎Electromechanical walking, pneumatic locking, with automatic zero function.The main motor of this machine adopts frequency conversion motor, with standard startprotection function.The whole adsorption design can deliver bending/warping and thin paper board with highaccuracy.

◎The paper feeding part adopts 4-axis no-pressure servo leading edge double bellows to feedpaper more smoothly and accurately, and can be fed continuously or separately.

◎Using 3 sets of strong dust suction fans with 2 sets of brush, pipe centralized dust collection,efficient removal of dust on the surface of cardboard.

◎The suction range can be preset the height and width of the cardboard, and can be adjustedintelligently directly. (varies with the width of the board).

◎Side baffle automatic alignment/digital display electric (order management system), front baffle,carton lifting before and after/lifting electric adjustment.

◎The leading edge of cardboard is used as the positioning reference, which is in line with thepositioning reference of printing, slotting and die cutting.

◎Improve feed and printing accuracy.

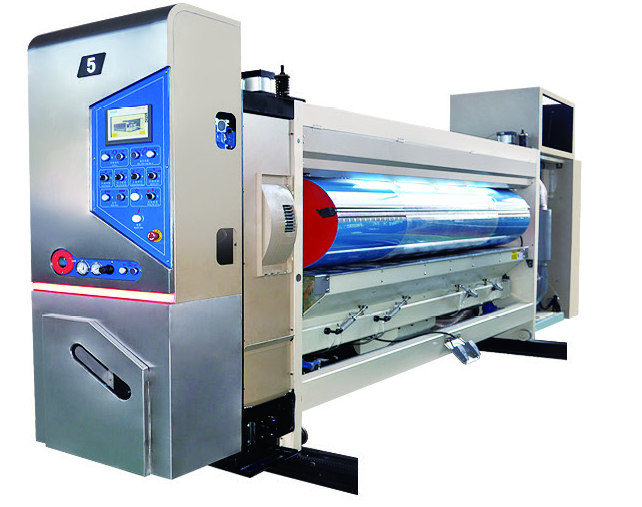

◎Plate roller adopts ratchet fixed plate hanging, full platehanging slot, suitable for 3x10mm plate hanging strip,plate can be aligned left and right, increase the accuracyof hanging plate. Printing roller, transfer wheel and suctionbellows synchronous computer/electric digital display electriclifting, adjustment range 0-11mm (order managementsystem).

◎The suction of the bellows can be adjusted according to theneeds of different sizes of cardboardThe iron core of the roller is made of high-quality seamlesssteel pipe, and the hot sleeve process of the shaft headis naturally tight (non-welded), and the depth conditioningtreatment is done for balance correction, and the operationis stable.

◎吸风箱吸力依照不同尺寸之纸板需求可调整适当吸力。

◎匀墨胶辊铁芯采用优质无缝钢管，轴头热套工艺自然紧配(非焊接)并做深度调质处理，作平衡校正，运转平稳。

◎密闭式刮刀系统，着墨量均匀保持印刷质量稳定，消除胶辊传墨因高速离心变动产生色相差异。

◎采用油转气刮刀系统，让着墨更均匀，可调节刀片与网辊接触压力，以减少对网辊磨损。

◎采用封闭式刮刀系统配合双向墨泵及高压快速喷洗机构，可大大节省油墨和清洗时间。

◎刮刀腔内喷涂“特氟龙”不沾层，避免水墨淤结。

◎陶瓷网纹辊优质无缝钢管基材，轴头热套工艺自然紧配(非焊接)并做深度调质处理、表层高温、高压喷涂陶瓷层;精密研磨，使用寿命为普通网辊的3倍。

◎精密激光雕刻网纹，载墨量均匀。

◎相位调整采用伺服马达双担式行星齿轮差动构造，间隙可微调，确保传动更精准，可360°精密调整，方便稳定可靠。

◎相位、印刷基准位、过纸间隙可实现订单管理式自动调整。相位固定采用气动式刹车机构，当机台分离或调整相位时，刹车机构限制机台转动，保持印版位置固定。

◎水墨供给系统采用气动隔膜泵循环供给，供墨稳定，操作方便，保养简单。

◎回墨斗为不锈钢材质，内部喷涂特氟龙不沾层加速水墨回流防止水墨淤结。

◎Closed scraper system, the ink amount is uniform tomaintain stable printing quality, and eliminate the colordifference caused by high-speed centrifugal change of rollerink transfer.

◎Oil to gas scraper system is adopted to make ink moreuniform, and the contact pressure between the blade andthe roller can be adjusted to reduce the wear of the roller.

◎The closed scraper system with two-way ink pump and highpressure rapid spray washing mechanism can greatly saveink and cleaning time.

◎The "Teflon" non-stick layer is sprayed inside the scraper chamber to avoid ink deposition.Ceramic mesh roller high-quality seamless steel tube substrate, shaft head hot sleeve processnatural tight (non-welding) and depth conditioning treatment, surface high temperature, highpressure spraying ceramic layer; Precision grinding, the service life is 3 times that of ordinarymesh roller.

◎Precision laser engraving mesh, uniform ink load.Phase adjustment adopts servo motor double arm planetary gear differential structure,clearance can be fine-tuned to ensure more accurate transmission, 360° precision adjustment,convenient, stable and reliable.

◎Automatic adjustment of phase, printing reference and paper gap can be realized by ordermanagement.

◎The pneumatic brake mechanism is used for phase fixing.

◎When the machine is separated oradjusted, the brake mechanism limits the rotation of the machine and keeps the plate positionfixed.

◎Ink supply system adopts pneumatic diaphragm pump circulation supply, stable ink supply,easy operation, simple maintenance.

◎The ink return hopper is made of stainless steel, and the internal Teflon non-stick layer issprayed to accelerate the ink reflux and prevent ink deposition.

UV光油烘干部   UV Varnish drying section

◎采用紫外线方式快速烘干印刷表面的UV光油，避免出现掉墨现象和影响上光效果。

◎在紧急停机时，不会引起火灾事故，安全可靠，还可根据需要确定干燥范围，节约能源。

◎Use ultraviolet light to quickly dry the UV varnish on the printing surface to avoid ink loss and affect the glazing effect.

◎In the emergency shutdown, will not cause fire acidents, safe and reliable, but also according to the need to detemine the drying range, save energy.

◎Slotted tool holder transverse movement adjustmentmechanism adopts multi-lead rod with linear guide rail tomake the movement more flexible and accurate.

◎The slot is independently driven by servo motor computer/electric digital control 360-degree adjustment (operation,stop can be adjusted).

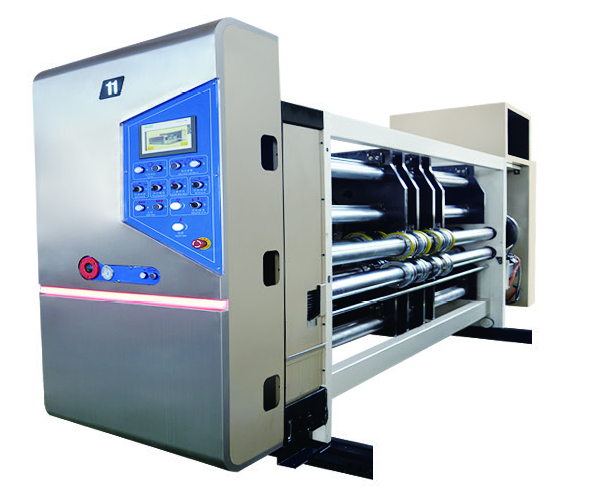

◎开槽部采用6轴10丝杆五刀盘结构。

◎全部上压线轮外表包裹优力胶，不损坏纸板。

◎开槽刀箱高调整有防碰撞保护装置，不会损坏机器。

◎弹性切角刀结构，可切断三层、五层纸板无需调整，操作方便。

◎压力辊的动力传动采用凸轮轴承传动，减少磨损使传动更平稳。

◎单轴双刀式开槽，箱高调整采用内齿结构，使润滑油不容易污染纸箱。

◎上刀座与下刀座采用传动轴联动，移动时保持上下刀对准，延长刀具寿命。

◎开槽刀座横移调整机构横移采用多丝杆配合线性导轨，使移动更灵活，准确。

◎开槽采用伺服马达独立驱动电脑/电动数字控制360度调整(运转、停止均可调整)。

◎The slotting part adopts the structure of 6 axes, 10 lead rods and five cutters.

◎The outer surface of all the upper pressing wheel is wrapped with rubber, which does notdamage the cardboard.

◎Slotted tool box height adjustment with anti-collision protection device, will not damage themachine.Elastic Angle cutter structure, can cut off three layers, five layers of cardboard withoutadjustment, easy to operate.

◎The power transmission of the pressure roller adopts CAM bearing transmission to reduce wearand make the transmission more stable.

◎Single-shaft double-knife slotting, box height adjustment using internal tooth structure, so thatubricating oil is not easy to pollute the carton.

◎The upper tool holder and the lower tool holder are linked by a drive shaft, which keeps theupper and lower tool alignment when moving, and extends the tool life.

◎The height of the die adopts the standard height of H24mm,which makes its production and installation easy and fast.

◎The paper pressing shaft is a steel roller, the shaft isequipped with 3 pieces of paper pressing wheel, the paperwheel is a rack type fast manual movement.

◎Phase is independently driven by servo motor, computer/electric adjustment, double-arm adjustable gap planetarygear structure, 360° precision adjustment.

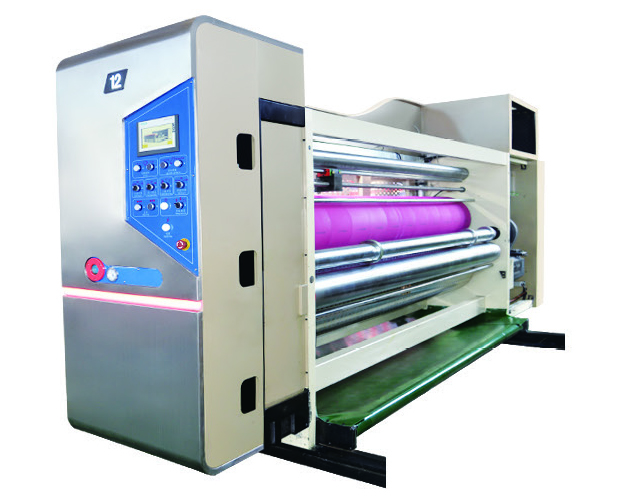

◎模切胶辊偏心齿轮与车壁配有淬火钢套，带齿圈、齿排气缸顶锁，大大增长偏心齿轮使用寿命及胶辊稳固性。

◎表面包裹优力胶，优力胶安装采用扣式结构，便于更换。

◎胶辊采用机械差动式结构使其左右自动横移，横移量30mm，可使优力胶套磨损均匀，延长使用寿命。

◎模切胶垫配有自动修复机构，使胶垫可车削多次，反复使用。

◎模切胶辊具有独立变频电机驱动线速度补偿功能。

◎漠切刀轮划有横向、纵向刻线，并附有M10螺丝孔，其螺丝孔位为国际标准规。轴向间距50mm，径向30等分(控局夹角20°)。

◎刀模高度采用标准高度H24mm，使其制作及安装容易、迅速。

◎过纸上压轴为钢辊，轴上配3件过纸压轮，过纸轮为齿条式快速手动移动。

◎相位采用伺服马达独立驱动、电脑/电动调整，双担式可调间隙行星齿轮构造，可360精密调整。

◎采用单独PLC及触摸显示屏操控，相位、过纸间隙采用数显式自动调整(入订单管理系统)。

◎相位固定采用气动式刹车机构，当机台分离或调整相位时，刹车机构限制机台转动，保持模切刀模位置固定。

◎Using a separate PLC and touch screen control, phase,paper gap using digital automatic adjustment (incomingorder management system).

◎The pneumatic brake mechanism is used for phase fixing.

◎When the machine is separated or adjusted, the brakemechanism restricts the rotation of the machine and keepsthe position of the die cutter fixed.

◎Die-cutting rubber roller eccentric gear and car wall equipped with hardened steel sleeve, withooth ring, tooth exhaust cylinder top lock, greatly increase the service life of eccentric gear andubber roller stability.

◎The surface is covered with rubber, and the rubber is installed with button structure, which iseasy to replace.

◎The rubber roller adopts the mechanical differential structure to automatically move around andaround, and the transverse movement is 30mm, which can make the rubber sleeve wear evenly and extend the service life.

◎Die-cutting rubber pad is equipped with automatic repair mechanism, so that the rubber pad canbe turned many times and used repeatedly.

◎Die cutting roller has independent variable frequency motor drive linear speed compensationunction.

◎The die cutter wheel is marked with horizontal and longitudinal lines, and is attached with M10screw holes, and the screw holes are international standard.

◎The axial spacing is 50mm, and theadial spacing is 30 equal parts (the control Angle is 20°).
