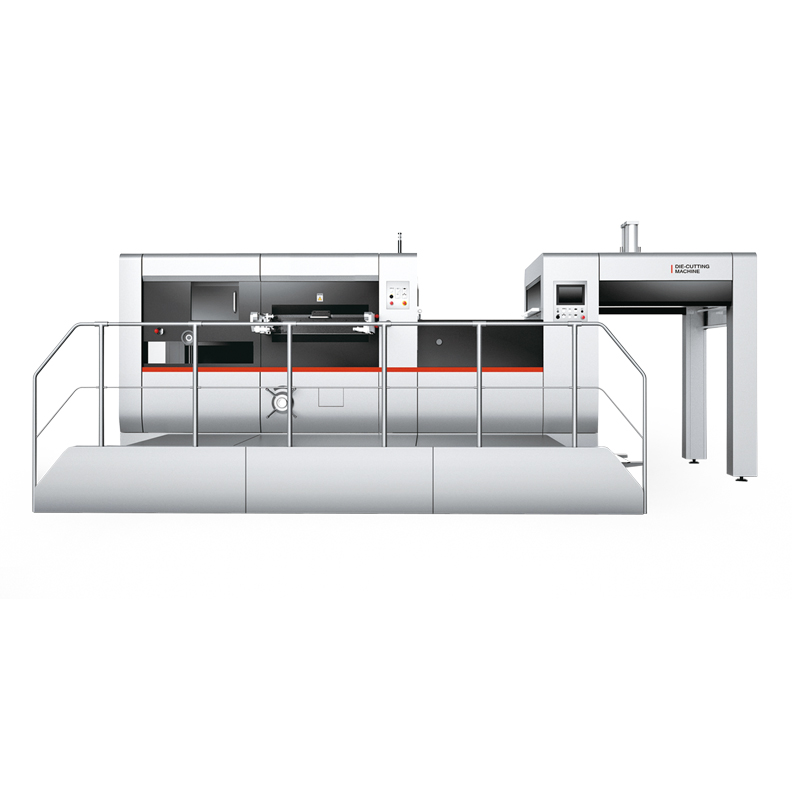

半自动平压平模切机
整机性能特点 Functions and features:

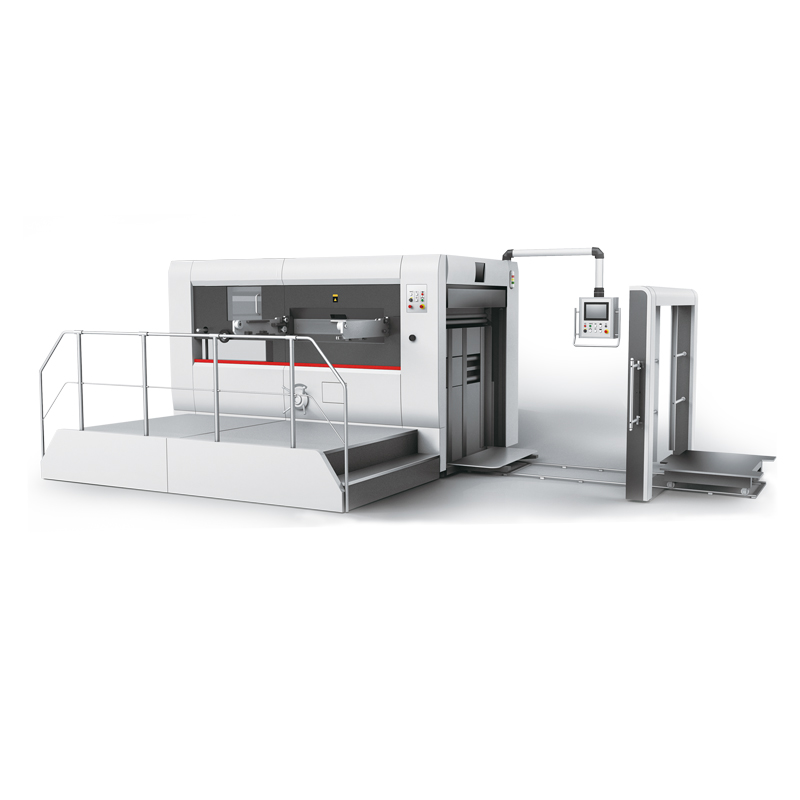

| MY1200/1300/1500/1650半自动平压平模切机是我公司结合同类产品的优越性研制的适用于彩箱、彩盒模切的设备。本机应用叼纸牙排，的开牙叼纸机构能适应各类型卡纸,瓦楞纸;前后定位及侧定机构使纸张的模切精度得以。具备间歇机构;动作的气动离合,气动锁版。使用可编程序控制器及人机界面,数字显示机器的工作速度、加工张数、总运行时间;机器的故障显示使故障排除操作非常方便。应用变频控制主电机，无级调速，运行平稳。本机多处设有传感器和装置,机器正常工作和人身。模切压力前后可单独调节,手动盘车方便省力,同时还可以进行无叼口模切。 | MY1200/1300/1500/1650 semi-automatic die-cutting and creasing machine is professional for cutting ofset print box, combining the advantages of domestic and foreigrproducts. There is high strength gripper,advanced open gripper structure can adapt to a variety of signal paper, corrugated board; Front, back and side gauge assure the.cutting accuracy It also has intermittent mechanism with nigh precision, sensitive pneumatic clutch, pneumatic lock plate , PLC, HMI. Working speed, paper account, totalrunning time are very clear on the screen; Input and output monitor make it easy to exclude the breakdowns. It adopt the frequency converter to the main motor, using forstepless governor. There are many protection sensor to ensure the workers safety. What' s more, the front and back pressure can be adjusted individually, manual running isvery convenient, die-cutting without clipper margin can be realized |
主要技术参数 Main technical parameter:
型号 Model | MY-1200 | MY-1300 | MY-1500 | MY-1650 | |
大输纸尺寸(mm) Max.Paper size | 1230*850mm | 1320*940mm | 1510*1120mm | 1670*1250mm | |
小输纸尺寸(mm） Min.Paper size | 350*450mm | 400*500mm | 450*550mm | 500*550mm | |
大模切尺寸(mm) Max.Die-cutting size | 1210*830mm | 1300*920mm | 1490*110mm | 1650*1200mm | |
小叼纸尺寸(mm) The minimum size in mouth | 8 | 8 | 8 | 8 | |
大模切压力(T) Max.Die-cutting Pressure | 300N/cm^2 | 300N/cm^2 | 320N/cm^2 | 350N/cm^2 | |
可加工纸张 (mm) | 白板纸Carboard | 200-2000G/M^2 8mm(max.thickness) | |||
| 瓦楞纸corrugated paper | |||||
模切精度(mm) Die-cutting precision | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
高速度(sheet/h) Max.die-cutting speed | 4500sheets/h | 4500sheets/h | 4500sheets/h | 4000sheets/h | |
给纸纸堆大高度(mm) Max.feeding pile height | 1400mm(above the level) | 1400mm(above the level) | 1400mm(above the level) | 1400mm(above the level) | |
收纸纸堆大高度(mm) Max.collecting pile height | 1200mm(above the level) | 1250mm(above the level) | 1250mm(above the level) | 1300mm(above the level) | |
总功率(KW) Total power | 11KW | 13.5KW | 13.5KW | 20KW | |
整机重量(T) Weight | 13T | 14.5T | 17.5T | 21T | |
机械外观尺寸 Dimensions | 4200*2200*2250mm | 4200*2250*2250mm | 4200*2300*2250mm | 5200*2450*2250mm | |
