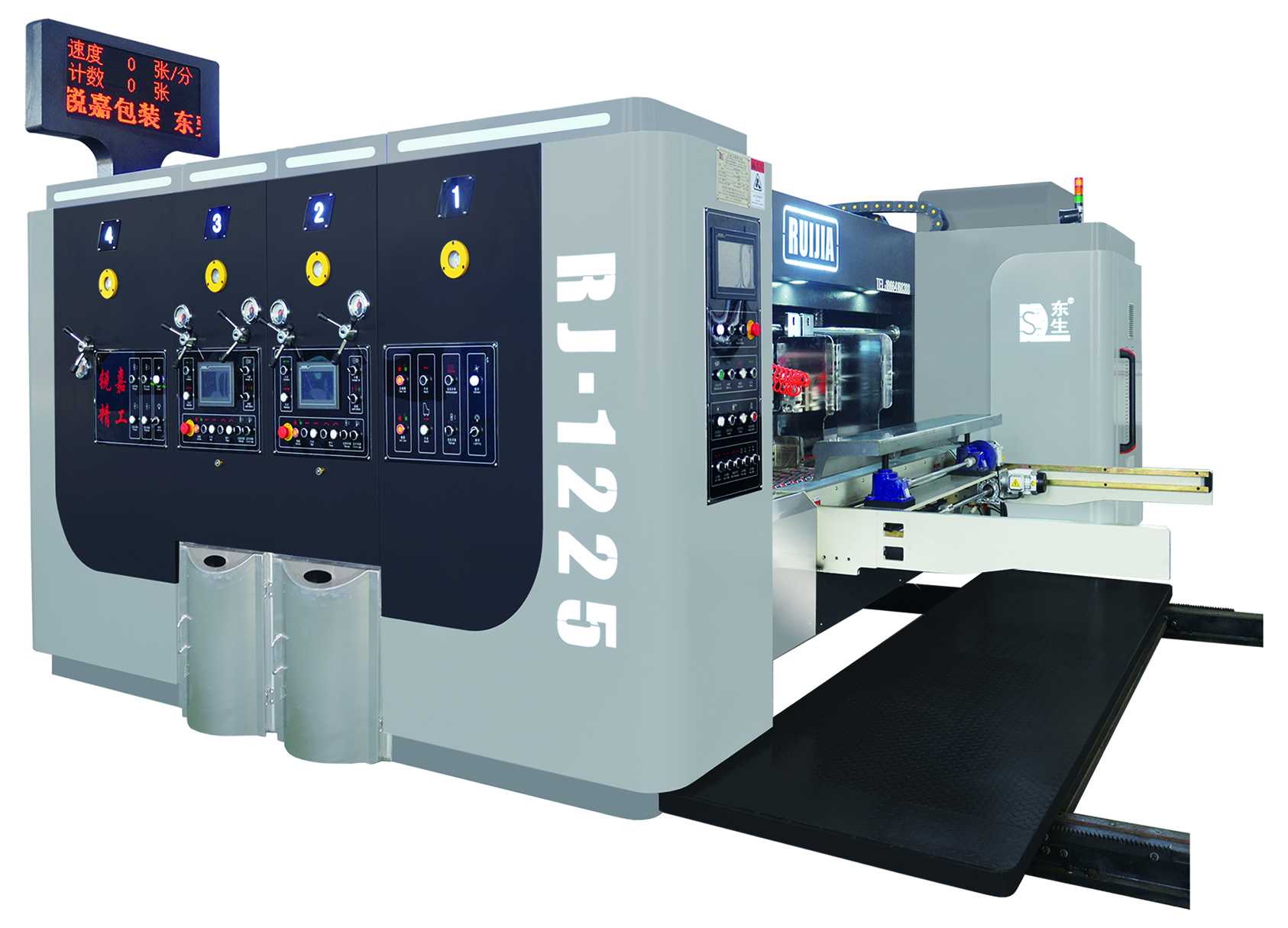

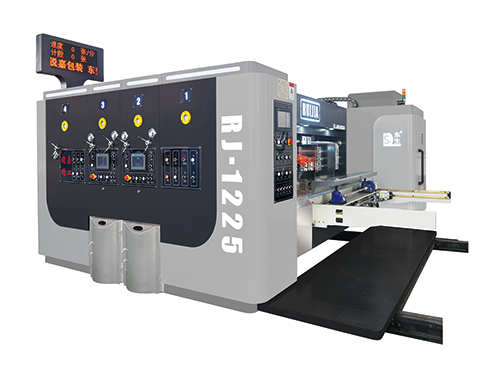

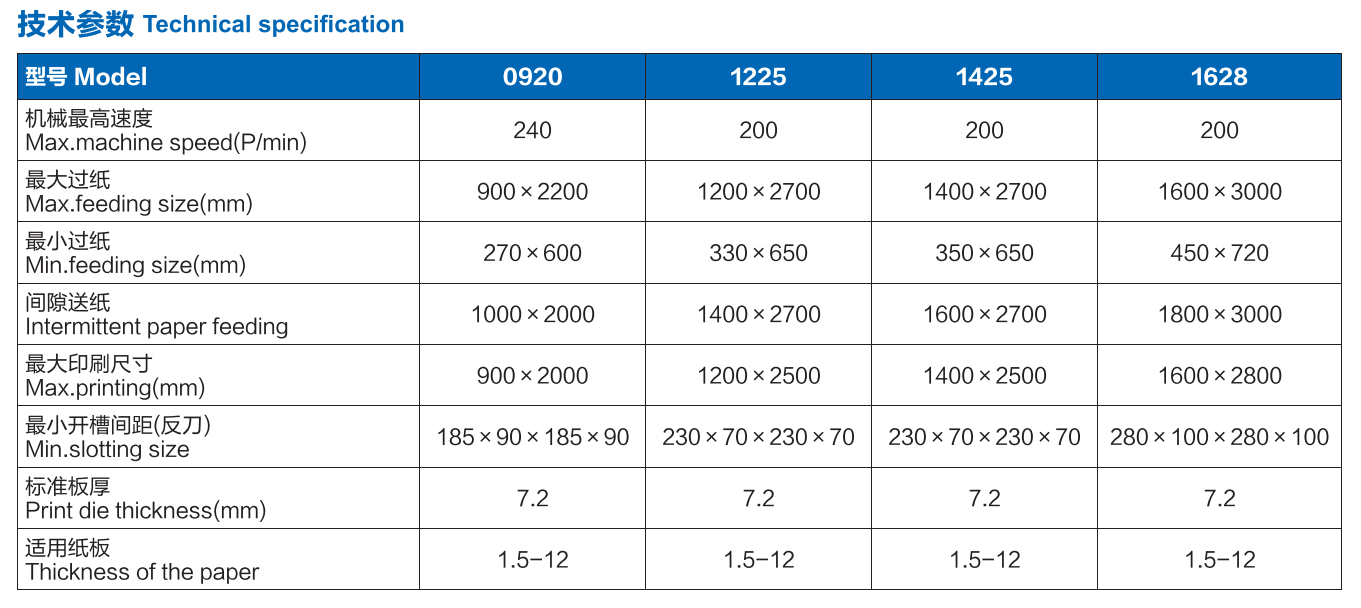

智能一键换单高速印刷免版模切机

功能与特点 Function and characteristic

◎整机电器及电脑软件均采用国际知名品牌，质量稳定可靠;采用人机界面，电脑订单管理，操作方便，换单更快。(可预存999个订单)。

◎整机墙板及重要部件，均采用时效处理，回火消除金属内应力;均采用高精度加工中心制作，数控磨床研磨加工。

◎整机轴、辊均采用优质钢材，研磨加工，高精度电脑动平衡校正，表面镀硬铬。

◎整机传动齿轮全部采用20CrMnTi合金钢，渗碳淬火处理，硬度HRC58-62;经磨齿加工，6级精度，保证长期使用套色精度高。

◎整机传动部位(轴、齿连接处)，均采用免键连接(胀紧套)，消除连接间隙，适合大扭矩长期高速运转。

◎整机传动轴承，重要传动部件均采用加强型调心轴承，维护简便，使用寿命更长。(采用三大名牌:“哈瓦洛”)

◎整机润滑系统采用喷淋式自动润滑。

◎整机调整预置位功能，送纸、印刷、开槽、模切，自动归零，记忆自动复位。

◎主机采用变频控制，启动、运转更平稳，更节能。

◎选装:陶瓷网纹辊;刮刀定墨系统;堆码机。

◎设有缺墨报警装置，实时监测供墨系统工作状态。

◎All electrical appliances and computer software are international wel-known brands, stable and reliable quality; Man-machine interface, computerorder management, easy operation, faster exchange. (can pre-store 999 orders).

◎The whole machine wall panel and important components are aging treatment, tempering to eliminate the internal stress of the metal;

◎Are made ofhigh precision machining center, CNC grinding machine grinding processing.

◎Machine shaft and roller are made of high quality steel, grinding processing. high precision computer dynamic balance correction, hard chromeplated surface.

◎The whole machine transmission gear is made of 20CrMnTi alloy steel, carburized water treatment, hardness HRC58-62 Ater grinding.

◎6-leveprecision, to ensure long-term use of high color accuracy.

◎The whole machine transmision parts (shart, tooth connection), are keyless connection (expansion sleeve), eliminate the connection gap,suitable for large torque long-term high-speed operation.

◎The whole machine drive bearings, the important transmission components are reinforced aligning bearings, easy maintenance, longer servicelife. (Using three famous brands: "Havalo")

◎The lubrication system of the whole machine adopts spray type automatic lubrication.

◎Machine adjustment preset function, paper feed, printing, slotting, die cutting, automatic zero, memory automatic resetThe host adopts frequency conversion control to start and run more smoothly and save energy.

◎Optional: ceramic roller; Scraper set ink system;

◎A stacker.With ink shortage alarm device, real-time monitoring of ink supply system working status.

功能与特点 Function and characteristic

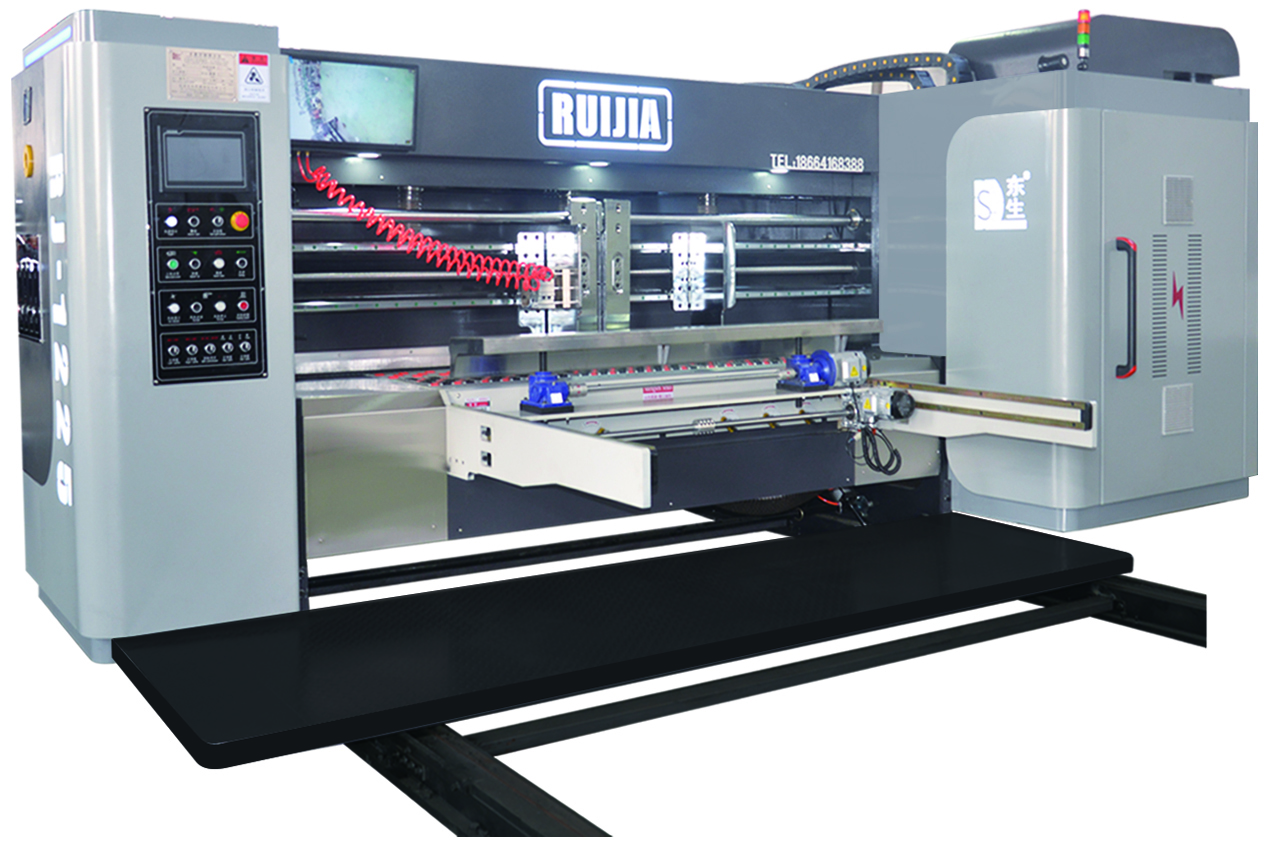

◎前缘送纸系统;

◎主马达采用变频器控制，并设有启动保护功能;

◎七轴双风箱前缘送纸7.5KW风机两台，吸风辅助送纸，采用变频风机，确保送纸顺畅;

◎左右侧挡板电动可电脑设定调整;

◎除尘装置，毛刷加上吸风清除纸板表面纸屑;

◎整机电动式零位找正;

◎采用触摸屏显示，各种机器数据实时监控;

◎可连续或隔张送纸(有计数器)(可根据需要选择连:续或隔张送纸)。

◎Leading edge paper feed system;

◎The main motor is controlled by frequency converter and equipped with starting protection function;

◎Seven axes double belows leading edge paper feed 7.5kW fan twe, suction auxliary paper feed. the use of frequency conversion fan to ensure smooth paperfeed;

◎The left and right side baffles can be set and adjusted by computer;Dust removal device, brush plus suction to remove paper scraps on the surface of cardboard;

◎Machine electric zero alignment;

◎Touch screen display, real-time monitoring of various machine data;

◎Continuous or separate paper feed (with counter(can be selected according to the need for continuous or separate paper feed).

功能与特点   Function and characteristic

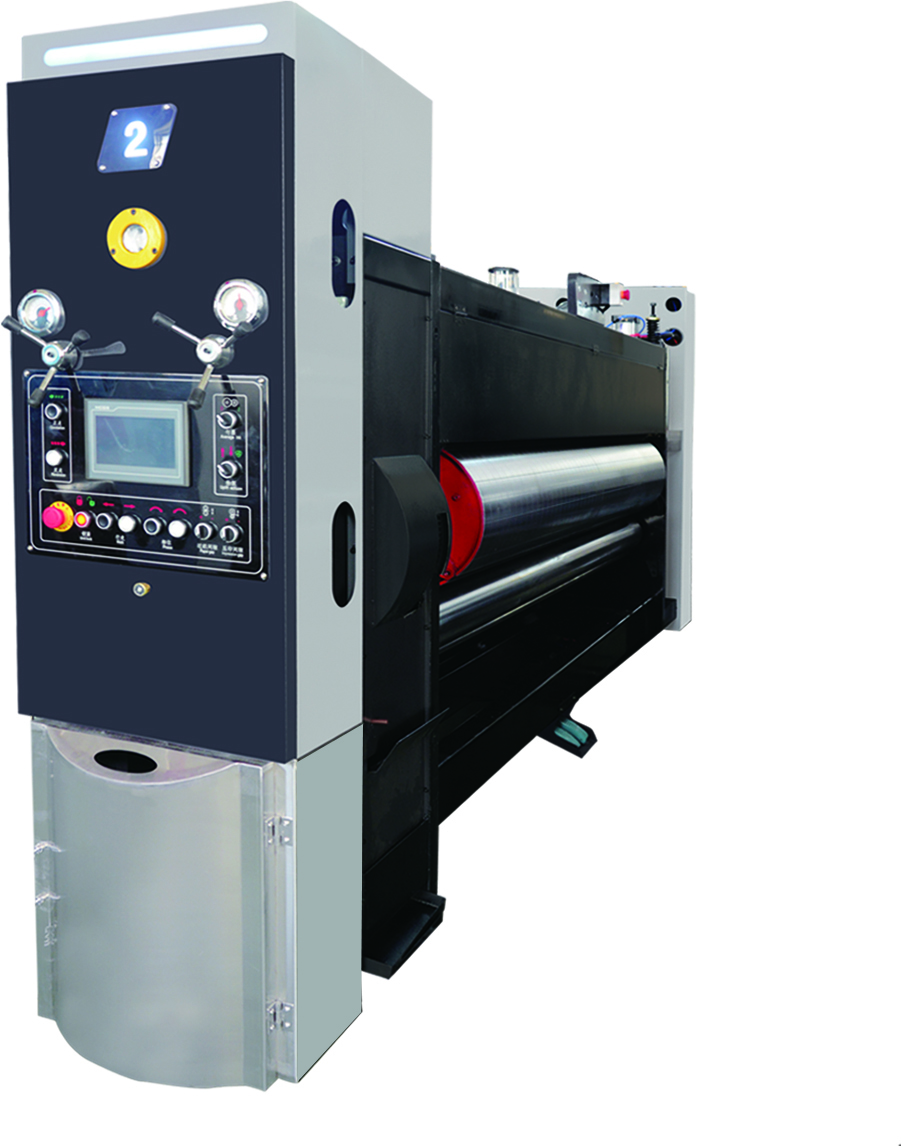

◎采用卷轴式挂版，换版快速简单，并设有脚踏开关控制正反转;

◎手动双向自锁结构调整压轮间隙，调整快速简便;

◎上墨胶辊采用优质耐磨橡胶，中高经特殊研磨，传墨效果好(可根据需要配置刮刀系统);

◎墨辊采用高精度硬铬网纹辊(可选配陶瓷网纹辊);

◎缺墨自动报警并停止送纸，避免损坏胶辊与网辊;

◎相位采用刹车马达变频控制，自动记忆擦版复位功能;

◎横向调整采用电动及可电脑设定调整，左右移动20mm;

◎相位固定采用气动式碟形刹车机构，当机台分离或调整相位时，保持印版位置固定。

◎Scroll type hanging plate, quick and simple version change, and a foot switch to control positive andnegative rotation;

◎Manual bidirectional self-locking structure to adjust the pressure wheel clearance, quick and easyadjustment;

◎The inking roller is made of high quality wear-resistant rubber, special grinding in the middle andhigh, and the ink transfer effect is good (the scraper system can be configured according to theneed);

◎Ink roller adopts high precision hard chrome mesh roller (optional ceramic mesh roller);

◎Automatic alarm and stop paper feed for lack of ink to avoid damage to rubber rolls and mesh rolls;

◎Phase using brake motor frequency control, automatic memory erase reset function;

◎Horizontal adjustment adopts electric and computer setting adjustment, moving 20mm left and right;

◎Phase fixing using pneumatic disc brake mechanism, when the machine is separated or adjustedphase, keep the plate position fixed.

功能与特点 Function and characteristic

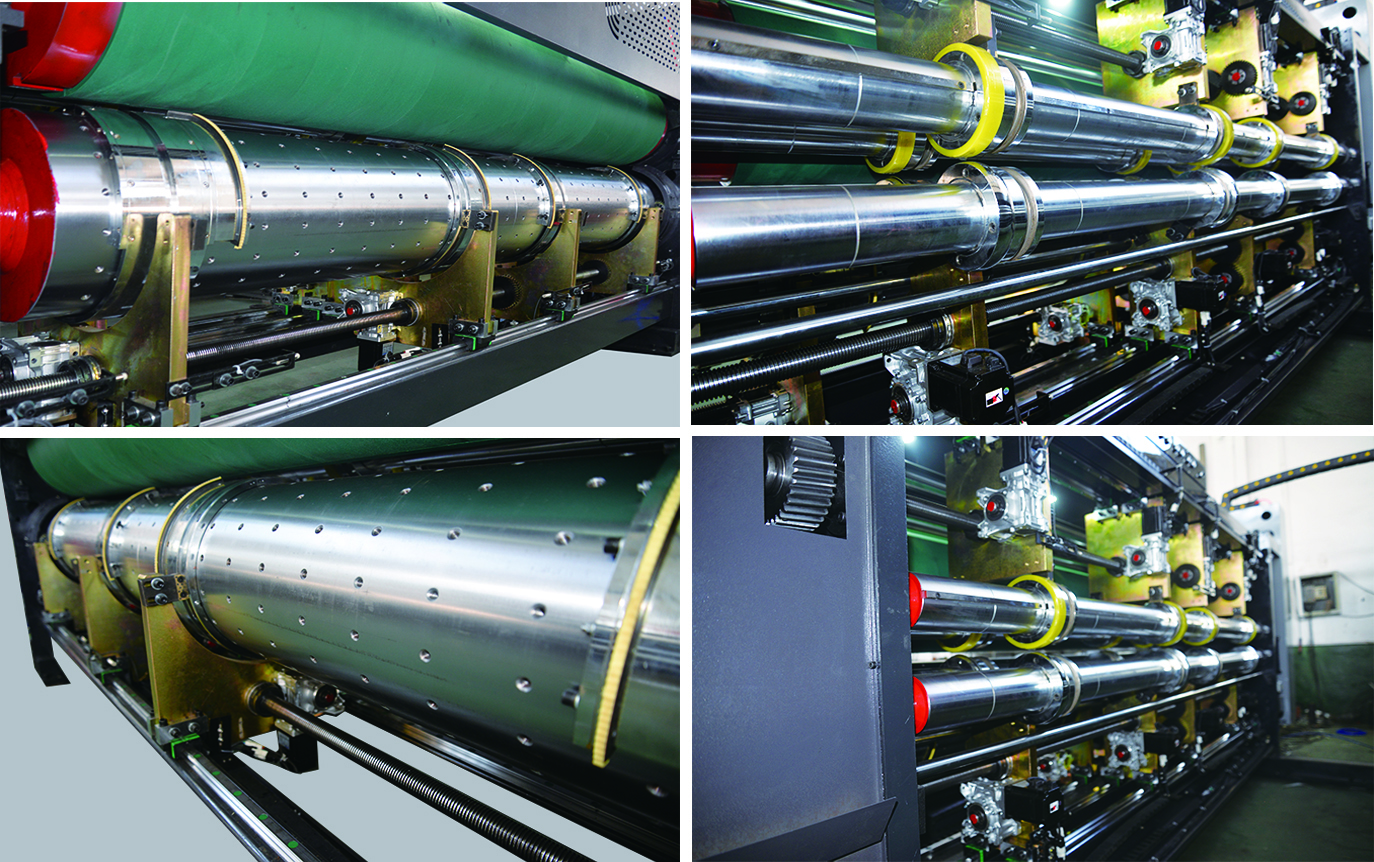

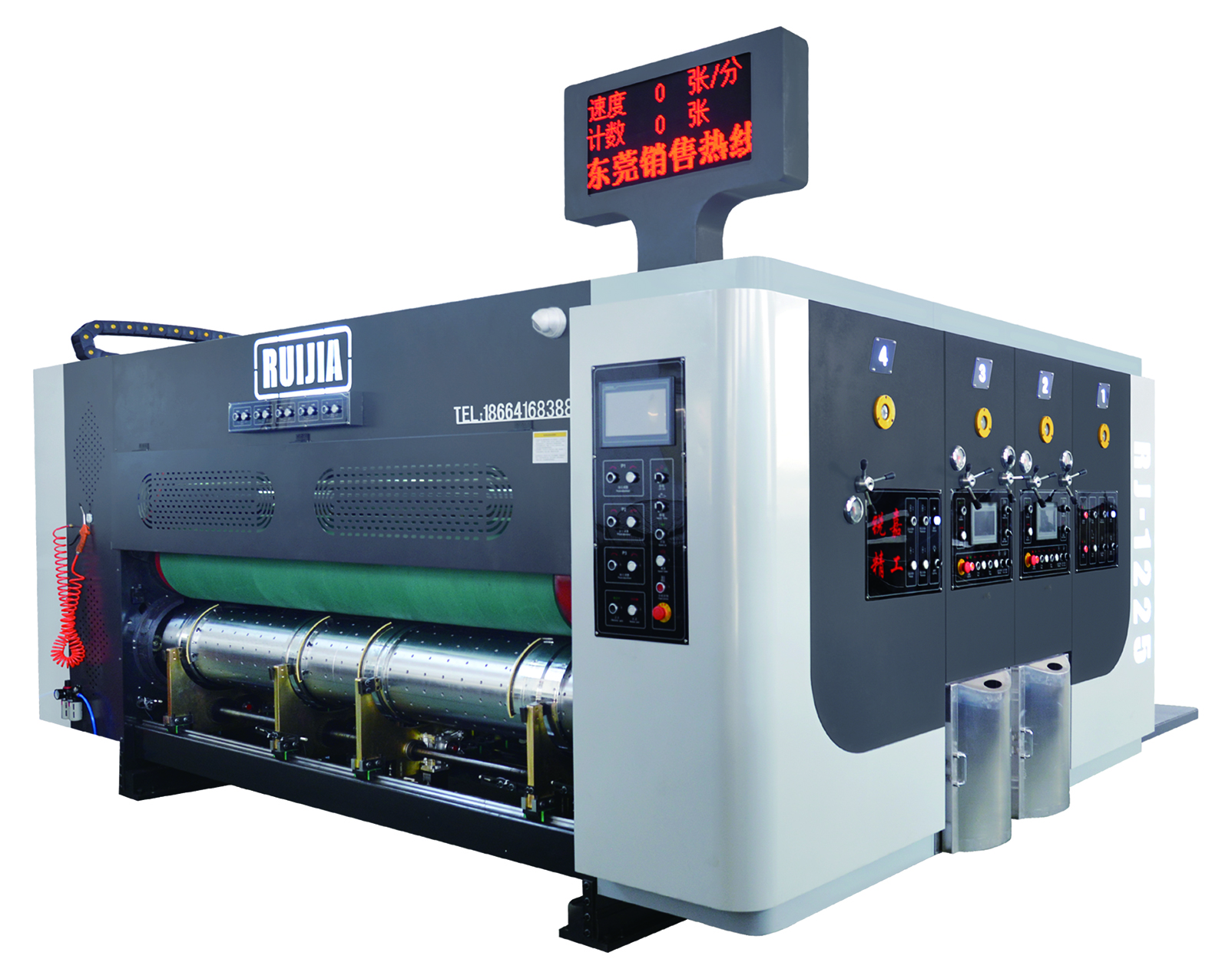

◎模切部由胶垫辊、模切辊、横移机构(行星差速机构)和导纸机构组导纸机构上、下轴由压线轮组成，两轴采用十字滑块连接，偏心套与定心轴承座分离，使传动齿轮的精度长期稳定。

◎两轴间隙采用双向自锁装置，数字显示，调整范围2-12mm。

◎优力胶垫辊，离心浇铸合金钢管，研磨加工，镀硬铬，静平衡。

◎该辊两端的支撑轴承为固定轴承套，无需消除由偏心带来的间隙，模切时噪音极小，极大地延长了使用寿命。

◎胶垫辊采用自动横移机构(减速机)，横移±15mm换向，可有效延长胶垫使用寿命。

◎伺服独立控制压线轮，可实现同模版与压线完全一致。

◎刀模辊(带斜口刀具壹套)离心浇铸合金钢管，研磨加工，镀硬铬，静平衡。

◎两端的支撑轴承采用偏心机构，无需反向压力机构(重力向下)，压力调整为电动，PLC控制，数字显示。

◎模版固定螺孔M10，轴向间距100mm，径向12等分。

◎刀模辊与优力胶辊在不模切状态下通过气缸推动偏心装置自动脱开，工作时自动合拢，减轻机器使用负荷，延长了优力胶和模切刀使用寿命。

◎自动跟踪送纸传递状况进行刀模辊升降，确保每一批模切工件为合格品，避免产生不必要的浪费，有效保护胶垫并延长其使用时间。

◎相位装置去掉了行星机构，由伺服电机直接调整，准确到位。

◎十字滑块机构采用了浮动盘和凸轮轴承相结合，传动盘采用了花键机构，大大地提高了模切部的传动精度和使用寿命，减小了安装误差和劳动强度。

◎The die cutting part is composed of rubber cushion roller, die cuting roller, transverse mechanism(planetary differential mechanism) and paper guide mechanism group, the upper and lower shaft ofthe paper guide mechanism are composed of a wire wheel.

◎The two axes are connected by a crossslider, and the eccentric sleeve is separated from the centring bearing seat, so that the accuracy of thetransmission gear is stable for a long time.

◎Two-way self-locking device for two-axis clearance, digital display, adjustment range 2-12mm.

◎Excellent force rubber cushion roller, centrifugal casting alloy steel pipe, grinding processing, hardchrome plating, static balance.

◎The supporting bearing at both ends of the roller is a fixed bearing sleeve,it is not necessary to eliminate the gap brought by the eccentricity, and the noise during die cutting isvery small, which greatly extends the service life.

◎Rubber cushion roller adopts automatic transverse movement mechanism (reducer), transversemovement 15mm reversing, can effectively extend the service life of rubber cushionServo independent control line press wheel, can achieve the same template and line completelyconsistent.

◎Die roll (with a set of bevel cutting tool) centrifugal casting alloy steel pipe, grinding processing, hardchrome plating, static balance.

◎The support bearings at both ends adopt eccentric mechanism, withoutreverse pressure mechanism (gravity downward), pressure adjustment to electric, PLC control, digitaldisplay.

◎Mold fixed screw hole M10, axial spacing 100mm, radial 12 equal points.The die roll and the rubber roll in the non-die cutting state through the cylinder to push the eccentricdevice automatically off, the automatic closing when working, reduce the machine load, prolong theservice life of the rubber and die cutting tool.

◎Automatically track the transfer status of the paper feed to make the die roll rise and fall, ensure thateach batch of die cutting workpiece is qualified, avoid unnecessary waste, effectively protect the rubberpad and extend its use time.

◎Phase device removed the planetary mechanism, directly adjusted by the servo motor, accurate in place.

◎The cross slider mechanism adopts a combination of floating disc and CAM bearing. and the transmission disc adopls a spline mechanism, which grealyimproves the transmission accuracy and service life of the die cutting part, and reduces the installation error and labor intensity

功能与特点   Function and characteristic

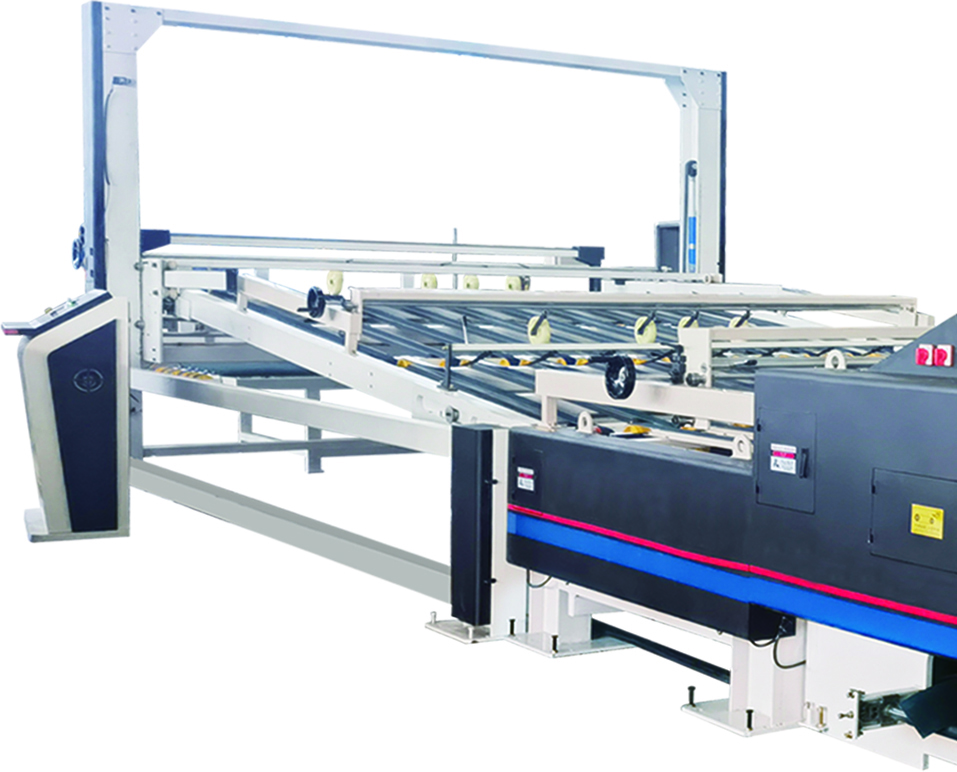

◎接纸可手动或自动调整;

◎接纸速度与送纸速度同步，亦可单独调整接纸速度;

◎堆叠高度1700mm;

◎床台升降强力链条带动;

◎接纸平台装有防坠装置，保证操作者安全;气压动作接纸托板，在纸板堆叠到一定高度时，接纸板自动伸出托住纸板;

◎平面皱纹皮带，防止纸板下滑;

◎接纸臂皮带单独调整松紧度，不受皮带长度限制。

◎The paper can be adjusted manually or automatically;

◎The receiving speed is synchronized withthe feeding speed, and the receiving speed can be adjusted separately.

◎Stack height 1700mm;

◎Bed liting strong chain drive;

◎The paper receiving platform is equipped with anti-fall device to ensure the safety of the operator;

◎Air pressure action paper plate, when the cardboard stack to a certain height, the cardboard automatically extended to hold the cardboard;

◎Flat corrugated belt to prevent the slide of cardboard;

◎The tightness of the paper arm belt is adjusted separately, and is not limited by the length of the belt.
